问题及环境

1.有两张数据库表exception_invoice_status_log和invoice_exception_status，其中exception_invoice_status_log数据量10w左右，invoice_exception_status数据量可以忽略
2.两张表数据库结构如下

CREATE TABLE IF NOT EXISTS "exception_invoice_status_log"
(
    "invoice_status_log_id" BIGINT,
    "exception_status_id"   BIGINT,
    CONSTRAINT "pk_eisl_invoice_status_id_exception_status_id" PRIMARY KEY ("invoice_status_log_id", "exception_status_id"),
    CONSTRAINT "fk_eisl_exception_status_id" FOREIGN KEY ("exception_status_id") REFERENCES "invoice_exception_status" ("id")
);

CREATE TABLE IF NOT EXISTS "invoice_exception_status"
(
    "id"   INT         NOT NULL,
    "name" VARCHAR(20) NOT NULL,
    CONSTRAINT "pk_invoice_exception_status" PRIMARY KEY ("id")
);

3.现有数据库查询如下，查询效率非常psql低下

SELECT "ies"."name"
FROM "exception_invoice_status_log" "eisl"
         LEFT JOIN "invoice_exception_status" "ies"
                   ON ("eisl"."invoice_status_log_id" = 1000 AND "eisl"."exception_status_id" = "ies"."id")
ORDER BY "eisl"."exception_status_id"

原因分析

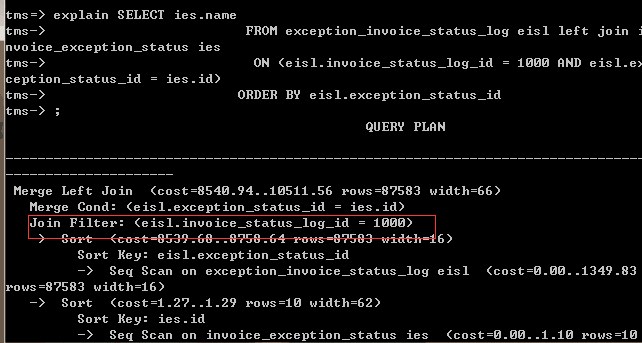

1.先分析查询语句

发现LEFT JOIN的条件并没有走索引 而是过滤条件

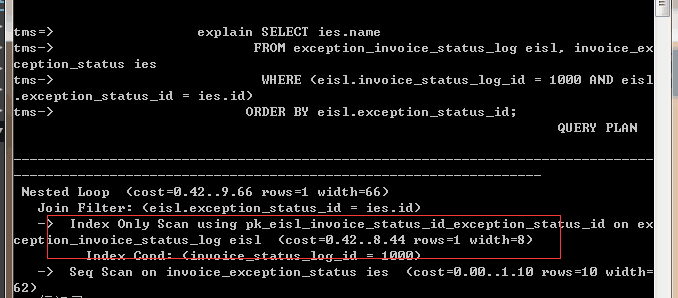

2.将LEFT JOIN修改为JOIN分析

SELECT "ies"."name"
FROM "exception_invoice_status_log" "eisl",
     "invoice_exception_status" "ies"
WHERE "eisl"."invoice_status_log_id" = 1000
  AND "eisl"."exception_status_id" = "ies"."id"
ORDER BY "eisl"."exception_status_id"

发现使用JOIN后查询条件走的是主键索引

结论

在postgresql中，若非联合主键，使用LEFT JOIN且条件为主键关联时，会使用主键索引。
若是联合主键，LEFT JOIN用主键关联不会走主键索引，使用JOIN会。
